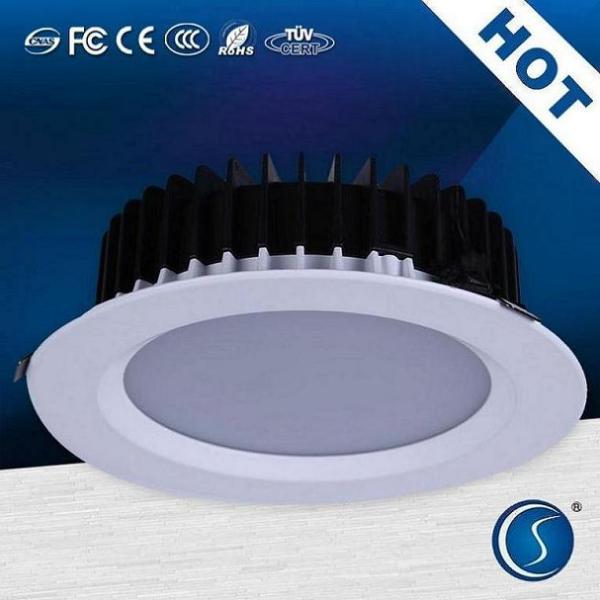

Supply 15 watt led down light - new high-quality LED downlight
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. is Chinese well-known LED lamp production enterprise development. We set the production, R & D, sales, long-term supply all kinds of high-quality LED lighting, the 15 watt led down light is one of them. The following parameters of the 15 watt led down light. If you are interested to buy the 15 watt led down light, you can talk with us through email.

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. xnyuantian01
Sourcechip 15 watt led down light Contact E-mail:
Sourcechip 15 watt led down light website:
Sourcechip 15 watt led down light Tel: +86-769-81608082
Sourcechip 15 watt led down light Fax: +86-769-81608083
Sourcechip 15 watt led down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

LED Model No. SC-DLE015W01-30 SC-DLE015W01-40 SC-DLE015W01-60 Rated power 15W Consume power 15±1.5W Input Voltage AC 100-240V Output Voltage 42-52V Input current 280mA±5% Efficiency ≥85% Cutout: Φ150mm P.F ≥0.80 Light Source CRI Warm white Natural white Pure white 3000±200k 4000±300k 6000±300k Light Source Luminous flux(lm) ≥50LM ≥55LM ≥60LM Lighting CCT 3000±300k 4000±300k 6000±500k Lighting LM 1500±150LM 1530±150LM 1550±150LM Lighting View Angle 110° Lighting CRI ≥70/≥80 Key point temperature (during aging test) LED Welding foot Lamp shell ≤75°C ≤70°C Working Temp. -10°C~40°C / R.H.≤85% Storage Temp. -30~65°C Life span 25,000 HR IP Rate IP20
Detail of LED Down Light
	1.energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires 2.Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability 3.Adopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 25000 hrs.. 4.Can be frequent starting, no flickering and glaring; high CRI;shock- resistant. 5.Simple & elegant appearance, newly & attractive design, suit for many illumination places.
Processes of Packaging
Application of LED DownLight
Service and Business Terms of LED DownLight
You inquiry will be replied in 12 hours. All your inquiries will be answered in fluent English by well-trained & professional staffs. We supply OEM & ODM service for our client, natural packing and customer's packing style available without extra cost. Many optional payment terms: L/C, T/T, Western Union, Paypal, Escrow etc, guaranty customer receive high quality products. Many Optional delivery / shipping methods: by ship, by air plane, by commercial express, specific line transportation, by post, etc, guaranty the goods reach customer on time with less freight cost.
Certification

Since its establishment in 2001, the dream pursuer in Sourcechip Opto-electrical Tech Co., LTD. follow their professional research and development team, through more than ten years’ arduous research and exploration, due to scientific strategic management and innovative products with their own most unique characteristics. Sourcechip Opto-electrical Tech Co., LTD focuses on the R&D,producing and applying tasks on LED Opto-electrical products with high quality in the world. It also spares no efforts to put forward the Give the Earth your hand plan so as to let healthy energy-saving products change people life.

Sourcechip China LED Lighting Co., Ltd.is located in China’s famous manufacturing town —Wu Sha Community in Chang’an Dongguan on Min Yi Road. It now has hundreds of dust-free workshop covering 7000 square meters ,owns internationally advanced LED DIP Automatic packaging line & SMD automatic packaging line. It can produce 1000kk products per year.
Sourcechip Opto-electrical Tech Co., LTD took the lead in passing the ISO9000 certification in 2007 successfully. R&D had already imported ISO/TS16949 automobile quality management standard andits five core managing tools including APQP and FMEA etc. We are striving to get high level quality guarantees the whole process form the previous planning to formation. In the meantime, we formulatedscientific and professional experimental center and high-quality quality control (QC) team so as to systematically ensure superb quality from a strategic height.

As a LED national high-tech enterprise and a leading Specialization,nationalization and high-grade LED manufacturer, Sourcechip Opto-electrical Tech Co., LTD strives to do research on and develop,produce and apply LED with high quality. This company’s super bright color series, SMD and LED products with high power and multi-specification, including high-grade LED packages, LED lighting and other fields, will extend those LED panel lights 、LED products with good performance and fair price to countries and regions all over the world.
Sourcechip Opto-electrical Tech Co., LTD will cooperate with high-end and stable customers and Strategic cooperative materials collaborators so as to formulate a strategic partnership value system with powerful competitiveness. We adhere to the principle that thinking for customers, onsidering for customers, straining every nerve to create more value for customers, fidelity and dignity. We consistently provide high quality products and services to customers. Looking forward to the future, our international talent team which has a global forward-looking vision advanced researching and developing ability pursues dreams enthusiastically and passionately. We set up a garden-like, international social enterprise of passion, responsibility, uality and gratitude, aiming to be an excellent enterprise in optoelectronic industry.
Our missions are to offer high-quality products and services to our customers, satisfying as well as going beyond their expectation. Relying on abundant financial resources and talent, we are committed to innovation and leadership in the field of high-end LED, contributing to the development lighting project.
