    The led ceiling panel light wholesale - LED panel light wholesale

    Ask Lasest Price
    Brand Name : Sourcechip
    Model Number : SC-PLC040S01
    Certification : CE, FCC, RoHS, UL
    Price : $49.67/piece
    Delivery Time : 7-10 working days
    Payment Terms : We accept PayPal, T/T, L/C,Western union, Escrow etc .If need further detail, Please feel free to co
    • Product Details
    • Company Profile

    The led ceiling panel light wholesale - LED panel light wholesale

    The led ceiling panel light wholesale - LED panel light wholesale

    Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. xnyuantian01
    Sourcechip led ceiling panel light Contact E-mail:
    Sourcechip led ceiling panel light website 1:
    Sourcechip led ceiling panel light website 2:
    Sourcechip led ceiling panel light Tel: +86-769-81608082
    Sourcechip led ceiling panel light Fax: +86-769-81608083
    Sourcechip led ceiling panel light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
    Source photoelectric Co., Ltd. is a professional engaged in the production, sales, R&D of LED lamps of the excellent enterprises in china. This led ceiling panel light is one of the main products we produce. The bright light, focus, good heat dissipation, the use of high power light source, long service life. If you to the led ceiling panel light interested, can contact us by e-mail. We will be happy to serve you.


    1.Technical Parameters

    LED Model No.

    SC-PLC040S01-30

    SC-PLC040S01-40

    SC-PLC040S01-60

    Rated power

    33W

    Consume power

    40±2W

    Input Voltage

    AC 100-240V

    Output Voltage

    32-42V

    Input current

    860mA±5%

    Efficiency

    ≥85%

    Cutout:

    595*595mm

    P.F

    ≥0.90

    Light Source CRI

    Warm white

    Natural white

    Pure white

    3000±200k

    4000±300k

    6000±300k

    Light Source Luminous flux(lm)

    ≥50LM

    ≥55LM

    ≥60LM

    Lighting CCT

    3000±300k

    4000±300k

    6000±500k

    Lighting LM

    2900±200LM

    3100±200LM

    3200±200LM

    Lighting View Angle

    120°

    Lighting CRI

    ≥70/≥80

    Key point temperature
    (during aging test)

    LED Welding foot

    Lamp shell

    ≤75°C

    ≤70°C

    Working Temp.

    -10°C~40°C / R.H.≤85%

    Storage Temp.

    -30~65°C

    Life span

    25,000 HR

    IP Rate

    IP20


    Features:

    lGreen healthylight sources,nomercurywith50,000 hourslong life span.

    lThehigh qualityaviationaluminumandAnodic oxidizedtreatmentformfashionable,

    beauty, and naturallight body.

    lLightdiffusion plate and light guide platewith90%highlight guiding factorprovidehigh

    outputratesand highlight color purity,no glare, no dark areas.


    2.Product Dimensions (in millimeter):

    Package Dimensions (in millimeter):21.jpg

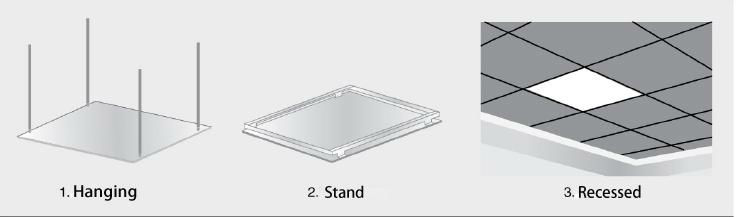

    Installation ways:


    Detailed Installation Steps:



    Photometrics:




    3.Company display

    The led ceiling panel light wholesale - LED panel light wholesale
    The led ceiling panel light wholesale - LED panel light wholesale
    4. Applications
