Brand Name : | Sourcechip |
Model Number : | SC-DLA809W01 |
Certification : | CE, FCC, RoHS, UL |
Price : | $10.92/piece |
Delivery Time : | 7-10 working days |
Payment Terms : | We accept PayPal, T/T, L/C,Western union, Escrow etc .If need further detail, Please feel free to co |

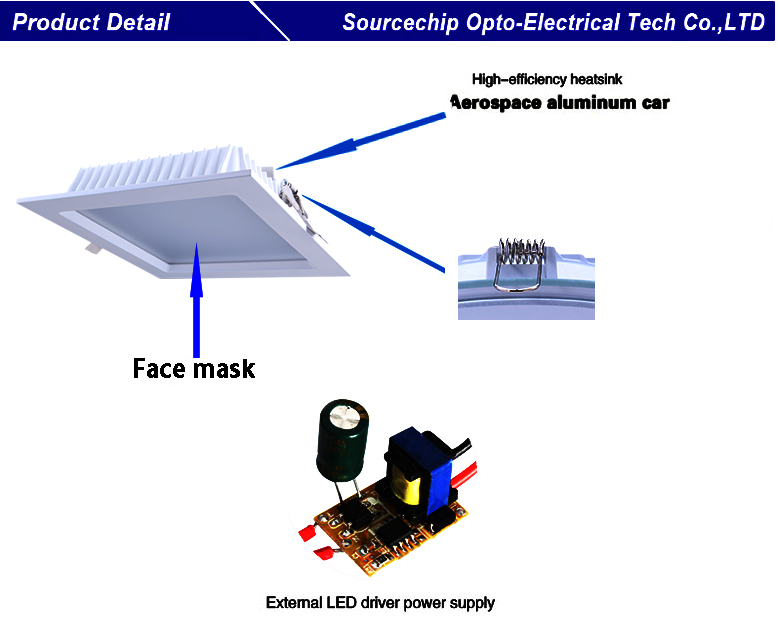

LED down light wholesale
China Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. is a
company with 12 years of experience in the production of LED
lighting manufacturer. The LED down light, excellent selection,
production norms, strict testing. So its performance is very good.
Its properties are as follows. If you are interested in this LED
down light, you can contact us by e-mail.
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd. xnyuantian01
Sourcechip LED down light Tel: +86-769-81608082
Sourcechip LED down light Fax: +86-769-81608083
Sourcechip LED down light Contact E-mail:
Sourcechip LED down light website:
Sourcechip LED down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
Technical data:
LEDModel No. | SC-DLA809W01-30 | SC-DLA809W01-40 | SC-DLA809W01-60 | |
Rated power | 9W | |||
Consume power | 9±1W | |||
Input Voltage | AC 100-240V | |||
Output Voltage | 27-30V | |||
Input current | 290mA±5% | |||
Efficiency | ≥80% | |||
Cutout: | 122*122mm | |||
P.F | ≥0.70 | |||
Light Source CRI | Warm white | Natural white | Pure white | |
3000±200k | 4000±300k | 6000±300k | ||
Light Source Luminous flux(lm) | ≥50.0LM | ≥55LM | ≥60LM | |
Lighting CCT | 3000±300k | 4000±300k | 6000±500k | |
Lighting LM | 575±100LM | 675±100LM | 775±100LM | |
Lighting View Angle | 120° | |||
Lighting CRI | ≥80 | |||
Key point temperature | LED Welding foot | Lamp shell | ||
≤75°C | ≤70°C | |||
Working Temp. | -10°C~40°C / R.H.≤85% | |||
Storage Temp. | -30~65°C | |||
Life span | 25,000 HR | |||
IP Rate | IP20 |
We can supply led ceiling lights samples. Our delivery time is 3-5 days for samples while 7-10 working days for bulk orders.
Our warranty is 3 years. If there is any problems, we can free to
fix it.
Please feel free to ask any questions, we will on line 24 hours.
Notice for use:
1. Pasted Master Carton label on each main mark and side mark,
pasted product label on Lights;
2. Seal packing box tight before transport, handle gently, mark
product name, quantity etc on carton box;
3. Storage requirement: moistureproof,dustproof, avoid press, avoid
tumble, avoid acid and base, avoid direct sunshine and expose.
![]() |
