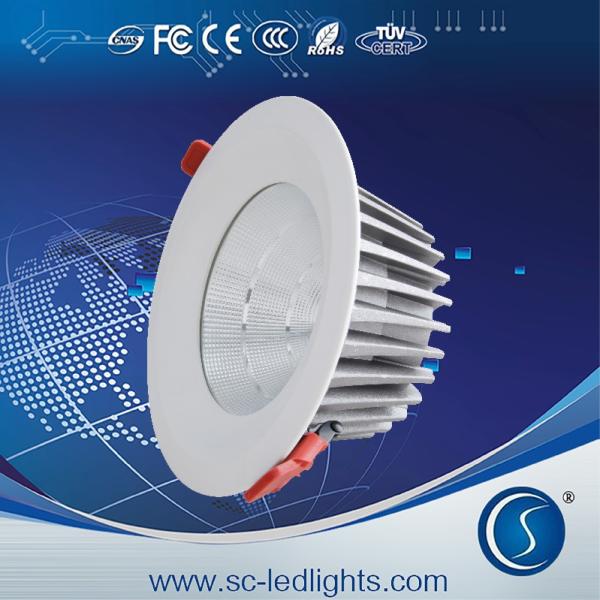

Supply of high-quality LED down light - 15 watt led down light factory

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Contact Now
    Buy cheap Supply of high-quality LED down light - 15 watt led down light factory from wholesalers

    Buy cheap Supply of high-quality LED down light - 15 watt led down light factory from wholesalers
    • Buy cheap Supply of high-quality LED down light - 15 watt led down light factory from wholesalers

    Supply of high-quality LED down light - 15 watt led down light factory

    Ask Lasest Price
    Brand Name : Sourcechip
    Model Number : SC-DLF015W01
    Certification : CE, FCC, RoHS
    Price : US $ 12 - 15 / Piece
    Delivery Time : 7-10 working days
    Payment Terms : We accept PayPal, T/T, L/C,Western union, Escrow etc .If need further detail, Please feel free to co
    Supply Ability : 50000 Ton/Tons per Month
    • Product Details
    • Company Profile

    Supply of high-quality LED down light - 15 watt led down light factory

    Supply of high-quality LED down light - 15 watt led down light factory

    • Light Source:LED
    • Item Type:Downlights
    • LED Light Source:COB
    • Warranty(Years):3
    • Input Voltage(V):AC85-265V
    • Lamp Power(W):15
    • Lamp Luminous Flux(lm):1280
    • Lamp Luminous Efficiency(lm/w):80
    • CRI (Ra>):80
    • Color Temperature(CCT):Pure White
    • Working Temperature(℃):-20 - 55
    • Working Lifetime(Hour):50000
    • Lamp Body Material:Aluminum
    • IP Rating:IP20
    • Certification:BV, CE, EMC, RoHS
    • Model Number:SC-DLF015W01
    • Place of Origin:Guangdong, China (Mainland)
    • Brand Name:Sourcechip

    Sourcechip 15 watt led down light Tel: +86-769-81608082
    Sourcechip 15 watt led down light Fax: +86-769-81608083
    Sourcechip 15 watt led down light Contact E-mail:
    Sourcechip 15 watt led down light website 1:
    Sourcechip 15 watt led down light website 2:
    Sourcechip 15 watt led down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
    yuanjinglogo01
    Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.

    Product Description
    • Energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires
    • Driver uses international advanced isolated low voltage constant current driving scheme and reasonable layout design, improving the precision of constant current of the driver and surge handling capability, so the led light source can work more stably under frequent switching condition. Driver output has over current protection, over voltage protection and short circuit protection, to ensure the safety and stability of the product.
    • The surface of the product is used nano cooling materials spraying treatment to improve the heat dissipation capacity by 15-20%, so that product life span achieves to 25000 hrs.
    • No flickering and glaring; high CRI;shock-resistant;
    • Professional appearance design makes the product simple and elegant, suiting for many illumination places.
    • LED light source is adopted advanced making process and high quality chips, so the led is very bright.

    Supply of high-quality LED down light - 15 watt led down light factory


    Specification:


    LEDModel No.

    SC-DLF015W01

    Power

    15W

    Input Voltage

    AC 100-240V

    Output Voltage

    40-50V

    Input current

    280mA±5%

    Efficiency

    ≥80%

    Cutout:

    120mm

    Lighting CCT

    Warm white

    Natural white

    Pure white

    3000±200k

    4000±300k

    6000±300k

    Lighting LM

    1130±100LM

    1180±100LM

    1280±100LM

    Lighting View Angle

    45 degree

    Lighting CRI

    ≥80

    Life span

    50,000 HR

    IP Rate

    IP20

    Product material


    Lamp body

    Diffusive lampshade

    light source

    Driver

    aluminium

    lighttransmittance≥85%

    COB/ 1pcs

    wide Input driver, EMC approved

    Supply of high-quality LED down light - 15 watt led down light factory


    Testing machine:

    Supply of high-quality LED down light - 15 watt led down light factory

    Voltage selection:

    Supply of high-quality LED down light - 15 watt led down light factory

    Colortemperature:

    Supply of high-quality LED down light - 15 watt led down light factory





    Packaging & Shipping

    Supply of high-quality LED down light - 15 watt led down light factory

    Supply of high-quality LED down light - 15 watt led down light factory

    Packing


    Name

    Description

    QTY

    N.W

    Inner box

    145*145*85MM

    1pcs

    Big carton case

    595*450*440MM

    1/60pcs

    • The stickers will be pasted onto the master carton
    • Seal packing box tight before transportation, handle gently, mark product name, quantity etc on carton box

    Company Information

    Dongguan SOURCECHIP OPTO-ELECTRICAL Co, Ltd. is a High-tech enterprise with 10 years history, BV,TUV approval factory as well .we focused on devote to developing, producing and selling indoor energy saving LED lights. There are more than 400 models products for option , these products are CE,RoHS certified and 3 - 5 years warranty.
