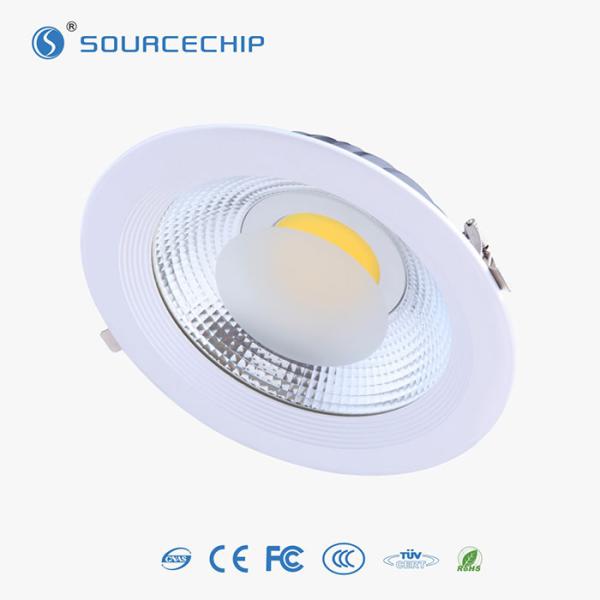

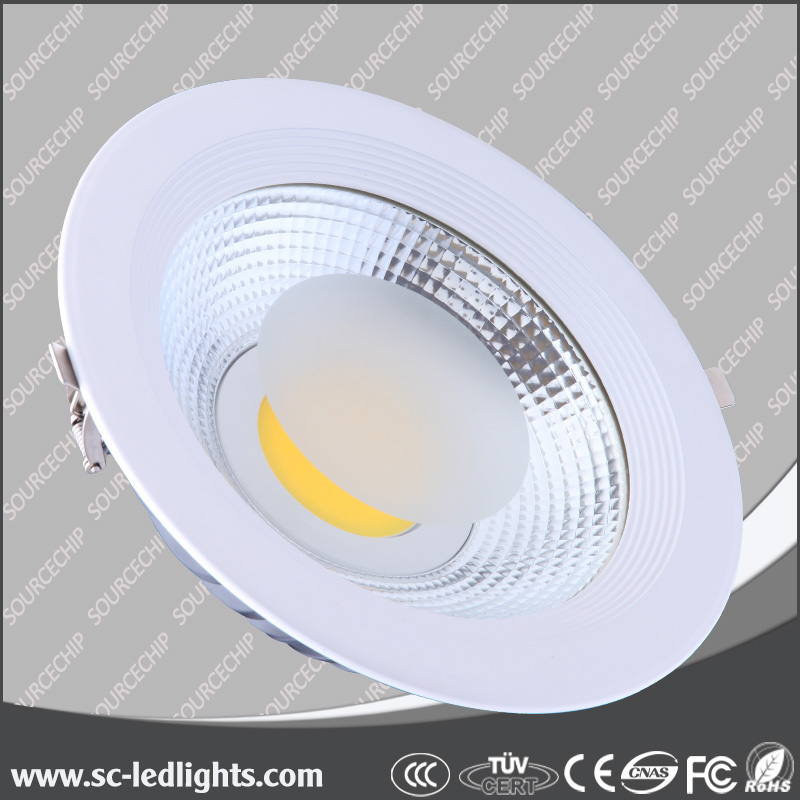

COB 30w led down light / quality LED downlight company

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.

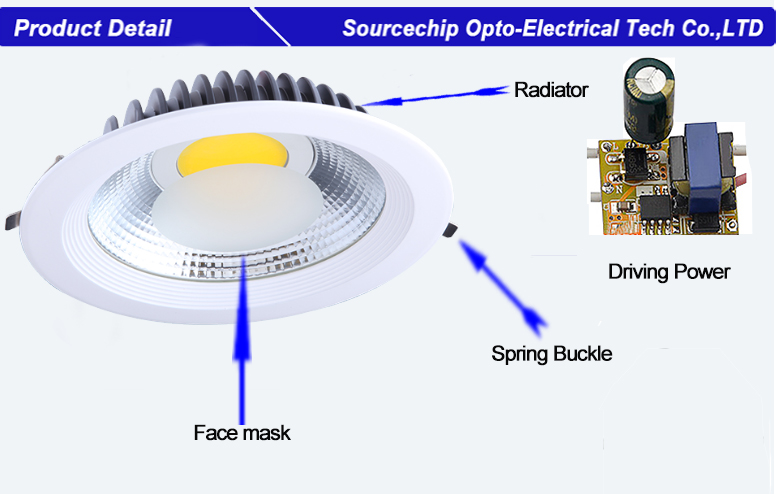

Product Description

LED Model No.	SC-DLK030W01-30	SC-DLK030W01-40		SC-DLK030W01-60
Rated power	30W
Consume power	33W
Input Voltage	AC 100-240V
Output Voltage	32-42V
Input current	280mA±5%
Efficiency	≥85%
Cutout:	200mm
P.F	≥0.80
Light Source CRI	Warm white	Natural white		Pure white
	3000±200k	4000±300k		6000±300k
Light Source Luminous flux(lm)	≥50.0LM	≥55LM		≥60LM
Lighting CCT	3000±300k	4000±300k		6000±500k
Lighting LM	2350±100LM	2380±100LM		2420±100LM
Lighting View Angle	40°
Lighting CRI	≥70/≥80
Key point temperature (during aging test)	LED Welding foot		Lamp shell
	≤75°C		≤70°C
Working Temp.	-10°C~40°C / R.H.≤85%
Storage Temp.	-30~65°C
Life span	50,000 HR
IP Rate	IP40

Installation

Application

Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.

Packaging & Shipping

Packing, transportation & storage requirement

Name	Description	QTY
PE bag	260*260mm	1pcs	N.W	15±5g
White box	260mm*260mm*65mm	1pcs	N.W	85±30g/1PCS
Big carton case	530mm*530mm*270mm	1/16pcs	G.W	14.5±0.5kg/carton

1,Pasted Master Carton label on each main mark and side mark, pasted product label on Lights;

2,Seal packing box tight before transport, handle gently, mark product name, quantity etc on carton box;

3,Storage requirement: moistureproof,dustproof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose;

4,storage expires: One year. exceed the expire time must Re-inspect electricity function before use.

Company Information

Dongguan SOURCECHIP OPTO-ELECTRICAL Co, Ltd. is a High-tech enterprise, focused on development produce and sell indoor energy saving LED lights. We devote to semiconductor lighting technology, supply safety, environmental, energy-saving and efficient LED lighting products as well as compete lighting solution.

Our Services

1. Samples can be sent in short time.

2. Your inquiry will be answered in 10 hours.

3. Experienced professional R&D team to make sure our products with innovation. Customized design is available.

4. OEM and ODM service.

5. Good price and high quality.

6. All products have 3 years warranty and CE,RoHS certificated.

Main market:

Europe,South america,Middle east

Our sales market

Sourcechipalready built up distribution network in German, U.K., U.S.A., Canada, Spain, Italy, we supply technical support and training to existing distributors, any quality issue in above area, customers are welcome contact Sourcechip local business partner for products exchange or maintaince.

Certifications

Certificates

Sourcechip COB 30w led down light Tel: +86-769-81608082
Sourcechip COB 30w led down light Fax: +86-769-81608083
Sourcechip COB 30w led down light Contact E-mail:
Sourcechip COB 30w led down light website 1:
Sourcechip COB 30w led down light website 2:
Sourcechip COB 30w led down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China
yuanjinglogo01

Since its establishment in 2001, the dream pursuer in Sourcechip Opto-electrical Tech Co., LTD. follow their professional research and development team, through more than ten years’ arduous research and exploration, due to scientific strategic management and innovative products with their own most unique characteristics. Sourcechip Opto-electrical Tech Co., LTD focuses on the R&D,producing and applying tasks on LED Opto-electrical products with high quality in the world. It also spares no efforts to put forward the Give the Earth your hand plan so as to let healthy energy-saving products change people life.

Sourcechip China LED Lighting Co., Ltd.is located in China’s famous manufacturing town —Wu Sha Community in Chang’an Dongguan on Min Yi Road. It now has hundreds of dust-free workshop covering 7000 square meters ,owns internationally advanced LED DIP Automatic packaging line & SMD automatic packaging line. It can produce 1000kk products per year.
Sourcechip Opto-electrical Tech Co., LTD took the lead in passing the ISO9000 certification in 2007 successfully. R&D had already imported ISO/TS16949 automobile quality management standard andits five core managing tools including APQP and FMEA etc. We are striving to get high level quality guarantees the whole process form the previous planning to formation. In the meantime, we formulatedscientific and professional experimental center and high-quality quality control (QC) team so as to systematically ensure superb quality from a strategic height.

As a LED national high-tech enterprise and a leading Specialization,nationalization and high-grade LED manufacturer, Sourcechip Opto-electrical Tech Co., LTD strives to do research on and develop,produce and apply LED with high quality. This company’s super bright color series, SMD and LED products with high power and multi-specification, including high-grade LED packages, LED lighting and other fields, will extend those LED panel lights 、LED products with good performance and fair price to countries and regions all over the world.
Sourcechip Opto-electrical Tech Co., LTD will cooperate with high-end and stable customers and Strategic cooperative materials collaborators so as to formulate a strategic partnership value system with powerful competitiveness. We adhere to the principle that thinking for customers, onsidering for customers, straining every nerve to create more value for customers, fidelity and dignity. We consistently provide high quality products and services to customers. Looking forward to the future, our international talent team which has a global forward-looking vision advanced researching and developing ability pursues dreams enthusiastically and passionately. We set up a garden-like, international social enterprise of passion, responsibility, uality and gratitude, aiming to be an excellent enterprise in optoelectronic industry.
Our missions are to offer high-quality products and services to our customers, satisfying as well as going beyond their expectation. Relying on abundant financial resources and talent, we are committed to innovation and leadership in the field of high-end LED, contributing to the development lighting project.
