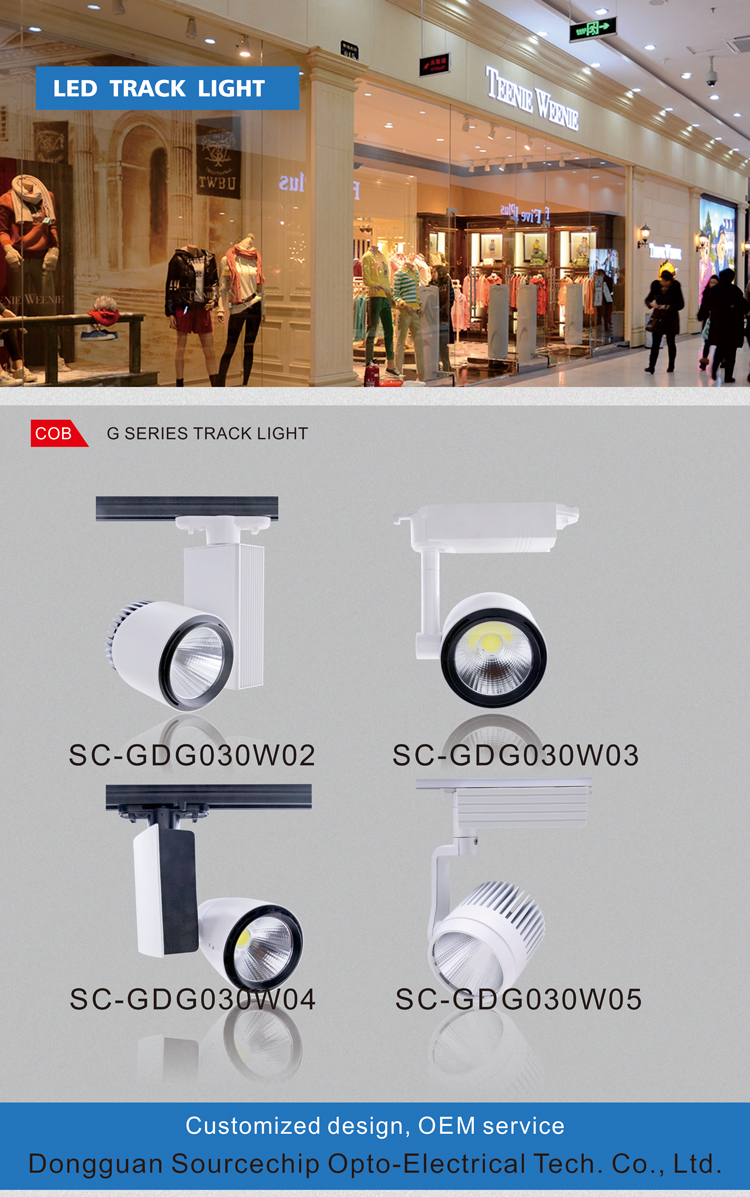

COB 30w LED track light hot sale
Sourcechip Opto-electrical Tech Co., LTD specializing in the production LED lights in china, Products include: LED panel light,LED down light,LED track light,LED ceiling light,Grille down light,LED tube,LED bulb,LED spot light,LED par light etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you.yuanjxinlong

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip COB 30w LED track light Tel: +86-769-81608082
Sourcechip COB 30w LED track light Fax: +86-769-81608083
Sourcechip COB 30w LED track light Contact E-mail:
Sourcechip COB 30w LED track light website 1:
Sourcechip COB 30w LED track light website 2:
Sourcechip COB 30w LED track light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

Quick Details

• Light Source: LED

• Item Type: Track Lights

• LED Light Source: COB

• Warranty(Years): 3

• Input Voltage(V): AC100-240V

• Lamp Power(W): 30

• Lamp Luminous Flux(lm): 2400

• Lamp Luminous Efficiency(lm/w): 80

• CRI (Ra>): 80

• Color Temperature(CCT): Cool White

• Working Temperature(℃): -10 - 40

• Working Lifetime(Hour): 50000

• Lamp Body Material: Aluminum

• Certification: BV, CCC, CE, EMC, FCC, LVD, RoHS

• Place of Origin: Guangdong, China (Mainland)

• Brand Name: sourcechip

• Model Number: SC-GDG030W02

Product Features

1, energy-saving and environmental, no ultra-violet, mercury and infrared, conform to ROHS requires

2, Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;

3, Adopt import light source and advanced heat dissipation technology,product malfunction life span achieve to 50000 hrs.

4, Can be frequent starting, no flickering and glaring; high CRI; shock-resistant;

5.Simple & elegant appearance, newly & attractive design, suit for many illumination places.

Specification

LED Model No.	SC-GDG030W02-30	SC- GDG030W02-40	SC- GDG030W02-60
Power	30±2W
Input Voltage	AC 100-240V
Output Voltage	30-32V
Input current	900mA±5%
Efficiency	≥85%
Match tracking rail	Two-wires/Three-wires/Four-wires
Lighting CCT	3000±250k	4200±250k	6200±250k
Lighting LM	2400±150LM	2500±150LM	2550±150LM
Lighting View Angle	30°/45°/60°
Lighting CRI	≥80
Working Temp.	-10℃~40℃ / R.H.≤85%
Storage Temp.	-30~65℃
Life span	35,000 HR
IP Rate	IP20

Light Source

Color temperature

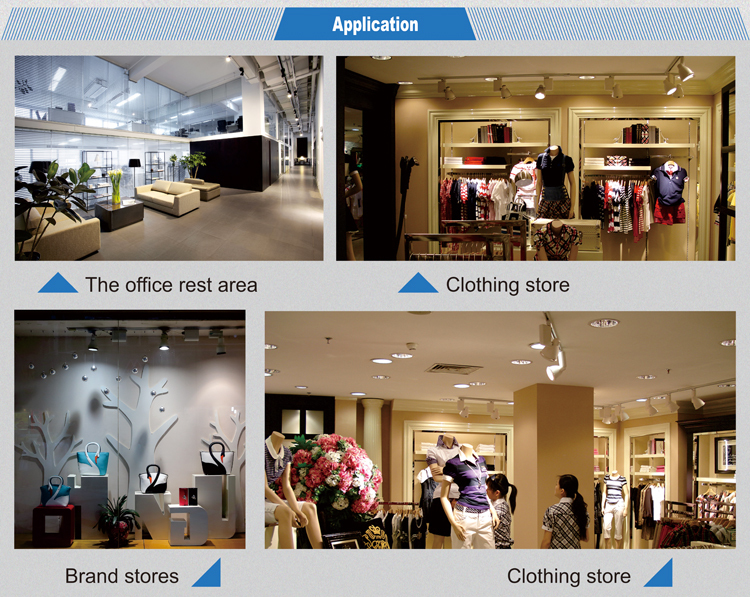

Application of

Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.

Testing Machines

Our Services

Our service

Since its establishment in 2001, the dream pursuer in Sourcechip Opto-electrical Tech Co., LTD. follow their professional research and development team, through more than ten years’ arduous research and exploration, due to scientific strategic management and innovative products with their own most unique characteristics. Sourcechip Opto-electrical Tech Co., LTD focuses on the R&D,producing and applying tasks on LED Opto-electrical products with high quality in the world. It also spares no efforts to put forward the Give the Earth your hand plan so as to let healthy energy-saving products change people life.

Sourcechip China LED Lighting Co., Ltd.is located in China’s famous manufacturing town —Wu Sha Community in Chang’an Dongguan on Min Yi Road. It now has hundreds of dust-free workshop covering 7000 square meters ,owns internationally advanced LED DIP Automatic packaging line & SMD automatic packaging line. It can produce 1000kk products per year.
Sourcechip Opto-electrical Tech Co., LTD took the lead in passing the ISO9000 certification in 2007 successfully. R&D had already imported ISO/TS16949 automobile quality management standard andits five core managing tools including APQP and FMEA etc. We are striving to get high level quality guarantees the whole process form the previous planning to formation. In the meantime, we formulatedscientific and professional experimental center and high-quality quality control (QC) team so as to systematically ensure superb quality from a strategic height.

As a LED national high-tech enterprise and a leading Specialization,nationalization and high-grade LED manufacturer, Sourcechip Opto-electrical Tech Co., LTD strives to do research on and develop,produce and apply LED with high quality. This company’s super bright color series, SMD and LED products with high power and multi-specification, including high-grade LED packages, LED lighting and other fields, will extend those LED panel lights 、LED products with good performance and fair price to countries and regions all over the world.
Sourcechip Opto-electrical Tech Co., LTD will cooperate with high-end and stable customers and Strategic cooperative materials collaborators so as to formulate a strategic partnership value system with powerful competitiveness. We adhere to the principle that thinking for customers, onsidering for customers, straining every nerve to create more value for customers, fidelity and dignity. We consistently provide high quality products and services to customers. Looking forward to the future, our international talent team which has a global forward-looking vision advanced researching and developing ability pursues dreams enthusiastically and passionately. We set up a garden-like, international social enterprise of passion, responsibility, uality and gratitude, aiming to be an excellent enterprise in optoelectronic industry.
Our missions are to offer high-quality products and services to our customers, satisfying as well as going beyond their expectation. Relying on abundant financial resources and talent, we are committed to innovation and leadership in the field of high-end LED, contributing to the development lighting project.
