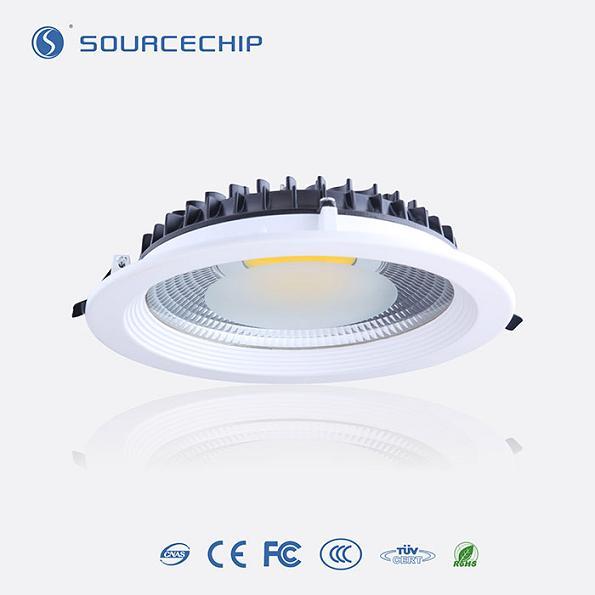

Supply 18W COB recessed LED downlight
Sourcechip Opto-electrical Tech Co., LTD specializing in the production LED lights in china, Products include: LED panel light,LED down light,LED track light,LED ceiling light,Grille down light,LED tube,LED bulb,LED spot light,LED par light etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you.yuanjxinlong

Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip 18W COB recessed LED downlight Tel: +86-769-81608082
Sourcechip 18W COB recessed LED downlight Fax: +86-769-81608083
Sourcechip 18W COB recessed LED downlight Contact E-mail:
Sourcechip 18W COB recessed LED downlight website 1:
Sourcechip 18W COB recessed LED downlight website 2:
Sourcechip 18W COB recessed LED downlight Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

Quick Details

• Light Source: LED

• Item Type: Downlights

• LED Light Source: COB

• Warranty(Years): 3

• Input Voltage(V): AC100~240V 50/60HZ

• Lamp Power(W): 18

• Lamp Luminous Flux(lm): 1440

• Lamp Luminous Efficiency(lm/w): 80

• CRI (Ra>): 80

• Color Temperature(CCT): Cool White

• Working Temperature(℃): -10 - 40

• Working Lifetime(Hour): 50000

• Lamp Body Material: Aluminum

• IP Rating: IP20

• Certification: CE, LVD, RoHS, UL

• Model Number: SC-DLM018W01

• Place of Origin: Guangdong, China (Mainland)

• Brand Name: sourcechip

LED Model No.	SC-DLM018W01-30	SC-DLM018W01-40		SC-DLM018W01-60
Rated power	18W
Consume power	18±1W
Input Voltage	AC 100-240V
Output Voltage	32-42V
Input current	280mA±5%
Efficiency	≥65%
Cutout:	105mm
P.F	≥0.60
Light Source CRI	Warm white	Natural white		Pure white
	2200±200k	5500±300k		6000±300k
Light Source Luminous flux(lm)	≥1350.0LM	≥1400LM		≥1450LM
Lighting CCT	3000±300k	4000±300k		6000±500k
Lighting LM	1380±100LM	1440±100LM		1480±100LM
Lighting View Angle	40°
Lighting CRI	≥70/≥80
Key point temperature (during aging test)	LED Welding foot		Lamp shell
	≤75°C		≤70°C
Working Temp.	-10°C~40°C / R.H.≤85%
Storage Temp.	-30~65°C
Life span	50,000 HR
IP Rate	IP40

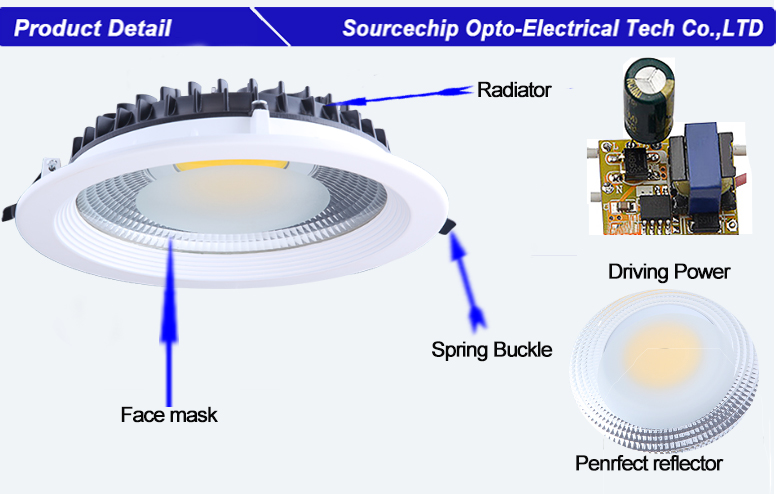

Product Description

Product Features

venergy-saving and environmental, no ultra-violet, mercury and infrared,conform to ROHS requires

vIsolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability;

vAdopt import light source and advanced heat dissipation technology, product malfunction life span achieve to 50000 hrs.

vCan be frequent starting, no flickering and glaring; high CRI; shock-resistant;

vSimple & elegant appearance, newly & attractive design, suit for many illumination places.

Packaging & Shipping

Packing, transportation & storage requirement

vSeal packing box tight before transport, handle gently, mark product name, quantity etc on carton box;vPasted Master Carton label on each main mark and side mark, pasted product label on Lights;

vStorage requirement: moistureproof,dustproof, avoid press, avoid tumble, avoid acid and base, avoid direct sunshine and expose;

vstorage expires: One year. exceed the expire time must Re-inspect electricity function before use.
