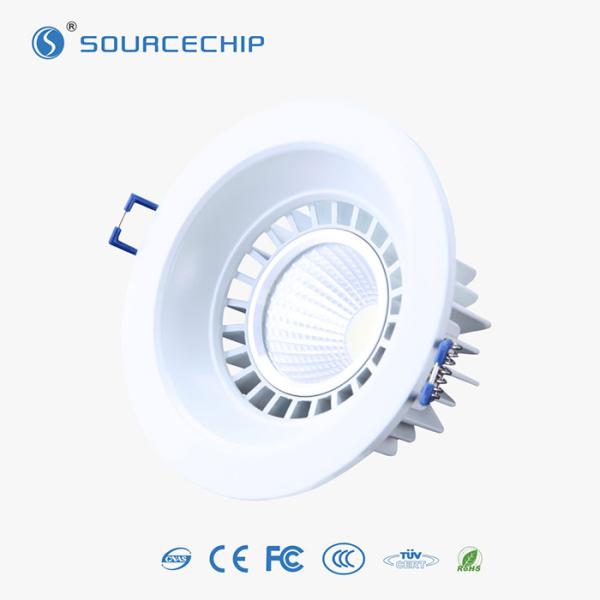

Bulk sales COB 10w LED downlight
Sourcechip Opto-electrical Tech Co., LTD specializing in the production LED lights in china, Products include: LED panel light,LED down light,LED track light,LED ceiling light,Grille down light,LED tube,LED bulb,LED spot light,LED par light etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you. yuanjxinlong
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip COB 10w LED downlight Tel: +86-769-81608082
Sourcechip COB 10w LED downlight Fax: +86-769-81608083
Sourcechip COB 10w LED downlight Contact E-mail:
Sourcechip COB 10w LED downlight website 1:
Sourcechip COB 10w LED downlight website 2:
Sourcechip COB 10w LED downlight Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

Quick Details

• Light Source:LED
• Item Type:Downlights
• LED Light Source:cob
• Warranty(Years):3
• Input Voltage(V):85-265
• Lamp Power(W):10
• Lamp Luminous Flux(lm):800±100
• Lamp Luminous Efficiency(lm/w):80
• CRI (Ra>):80
• Color Temperature(CCT):Cool White
• Working Temperature(℃):-10 - 40
• Working Lifetime(Hour):50000
• Lamp Body Material:Aluminum Alloy
• IP Rating:IP20
• Certification:BV, CCC, CE, EMC, FCC, LVD, RoHS, REACH
• Model Number:SC-DLAF10W01
• Place of Origin:Guangdong, China (Mainland)
• Brand Name:sourcechip
• Chip Brand.:sa'nan or Epister
• beam angle:40°​

• This ceiling light is fitted with the latest "COB" LED technology, providing the highest level of light output and the best colour rendering index (quality of light). Mounted infront of the LED is a reflector cone, spreading the light evenly to eliminate bright or dark spots or a yellow halo which otherwise can appear with some LED bulbs.
• Unique design aluminium finned heat sink, providing superior heat dissipation by conduction and convection. This keeps the LED at the optimal operating temperature, ensuring it's life isn't cut short. Glass front cover protects the LED from the environment. Central bulb pivots in the frame to allow directional adjustment of the light.
• Fire safety regulations always require recessed light fittings to be fire-rated whenever they’re fitted beneath occupied floors of a building. This particular model of Sourcechip LED ceiling light fulfils this requirement. The intumescent material used in its construction expands when heated to seal the ceiling and prevent the easy spread of flames. This provides crucial time for occupants of upper floors to evacuate.

Specification of led DOWN light modern:

LED Model No.	SC-DLAF10W01-30	SC- DLAF10W01-40	SC- DLAF10W01-60
Power	10±1W
Input Voltage	AC 100-240V
Output Voltage	30-32V
Input current	300mA±5%
Efficiency	≥85%
Cutout:	100mm
Lighting CCT	3000±250k	4200±250k	6200±250k
Lighting LM	800±100LM	820±100LM	850±100LM
Lighting View Angle	40°
Lighting CRI	≥80
Working Temp.	-10℃~40℃ / R.H.≤85%
Storage Temp.	-30~65℃
Life span	35,000 HR
IP Rate	IP20

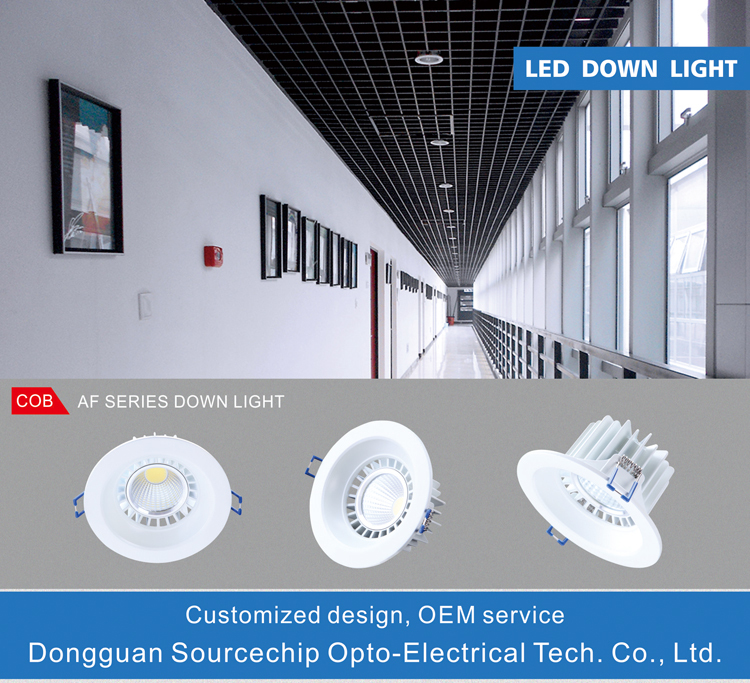

More picture of led downlight modern:

Feature of downlight led :

• Low power consumption, High power efficiency
• No UV or IR radiation
• Products are compact of aluminum material
• Superior thermal performance, high applicability
• Enviromental friendly:NO UV infrared and other radiation ,shock vibration resistant
• Imported light source ensure high brightness
• External constant- current driver, stable performance

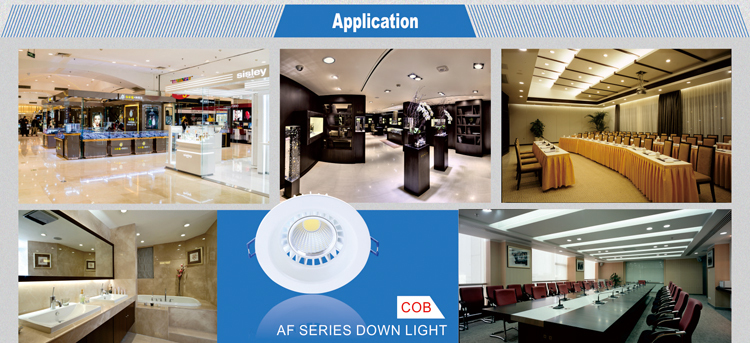

Application of LED light down:

• Shopping malls
• Restaurants, meeting rooms
• Hall, home
• Interior lighting, partial lighting and office
• Especially suitable for public areas like lobbies, corridor and stairwells

Test report:

Packaging & Shipping

Packing:

• The stickers will be pasted onto the master carton
• Seal packing box tight before transportation, handle gently, mark product name, quantity etc on carton box

Company Information

Dongguan sourcechip opto-electrical tech. co.,ltd is located in Dongguan City, Guangdong province,China.
Sourcechip has been specializing in manufacturing and marketing LED lights for 15 years.
It has advanced automatic amchines and professional testing lab,more than 200 experienced workers.
Sourcechip is a BV and TUV certified factory,alibaba golden supplier. All products are CE,RoSH approved.
With professional R&D team,sourcechip is ready for all kinds of requirements from its customers.
Products are mainly exported to Europe,South America,Asia,North Africa.

Sourcechip believes that customers' satisfaction is its goal.
