3w LED down light factory direct
Sourcechip Opto-electrical Tech Co., LTD specializing in the production LED lights in china, Products include: LED panel light,LED down light,LED track light,LED ceiling light,Grille down light,LED tube,LED bulb,LED spot light,LED par light etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you. yuanjxinlong
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip 3w LED down light Tel: +86-769-81608082
Sourcechip 3w LED down light Fax: +86-769-81608083
Sourcechip 3w LED down light Contact E-mail:
Sourcechip 3w LED down light website 1:
Sourcechip 3w LED down light website 2:
Sourcechip 3w LED down light Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

Quick Details

• Light Source:LED
• Item Type:Downlights
• LED Light Source:SMD 5730 0.5W
• Warranty(Years):3
• Input Voltage(V):AC 100-240V
• Lamp Power(W):3
• Lamp Luminous Flux(lm):220
• Lamp Luminous Efficiency(lm/w):80
• CRI (Ra>):80
• Color Temperature(CCT):Warm white/Natural white/Pure white
• Working Temperature(℃):-20 - 40
• Working Lifetime(Hour):35000
• Lamp Body Material:Aluminum
• IP Rating:IP20
• Certification:BV, CCC, CE, EMC, LVD, RoHS, SAA
• Model Number:SC-DLW003W01
• Place of Origin:Guangdong, China (Mainland)
• Brand Name:Sourcechip
• Application:Indoor
• Shipping:By Sea,Air,DHL,FEDEX,UPS,EMS,Or the other way you like
• After service:Yes
• OEM:Yes
• Cut out:85mm
• Input voltage:AC85~265V 50/60HZ
• P.F:≥0.70
• Lighting View Angle:120°

​

Basic specification of down led light

LEDModel No.	SC-DLW003W01-30	SC- DLW003W01-40	SC- DLW003W01-60
Power	3W
Input Voltage	AC 100-240V
Output Voltage	9-12V
Input current	280mA±5%
Efficiency	≥80%
Cutout:	85mm
P.F	≥0.70
Color temperature	Warm white	Natural white	Pure white
	3000±200k	4000±300k	6000±300k
Lighting LM	200±50LM	220±50LM	245±50LM
Beam Angle	120°
Lighting CRI	≥80
Life span	35,000 HR
IP Rate	IP20

SMD led down lighting Inner driver

SMD led downlight Product features

1.Can be frequent starting, no flickeringand glaring;highCRI;shock-resistant;

2.Simple&elegant appearance,newly &attractive design,suit for manyilluminationplaces.

3.energy-saving and environmental, no ultra-violet,mercury and infrared,conform to ROHS requires.

4.Adopt importlightsource and advanced heat dissipationtechnology,product malfunction life span achieve to 35000 hrs.

5.Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection;

High safety, stability and reliability.

Quality control for led down light:

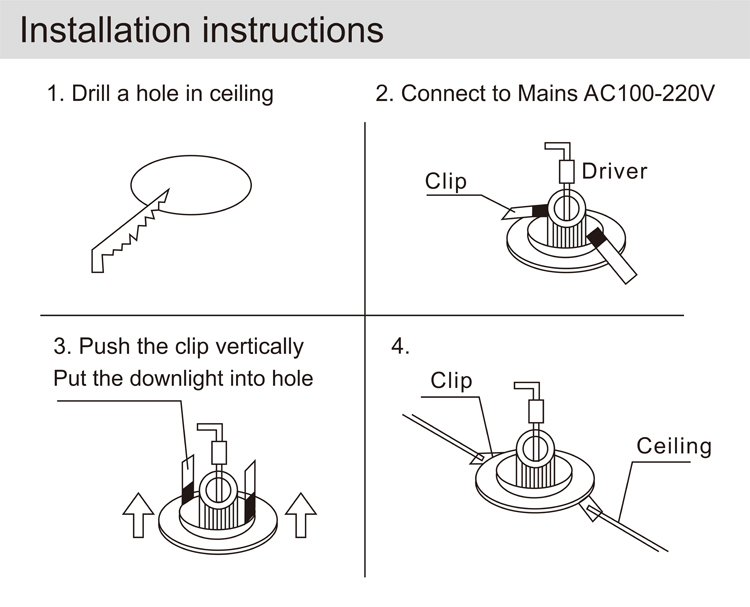

How to install led downlight

Application of smd downlight:

Offices, shopping mall, supermarket, schools, hospitals, hotels, parking lot, factories, municipal engineering, houses etc.
