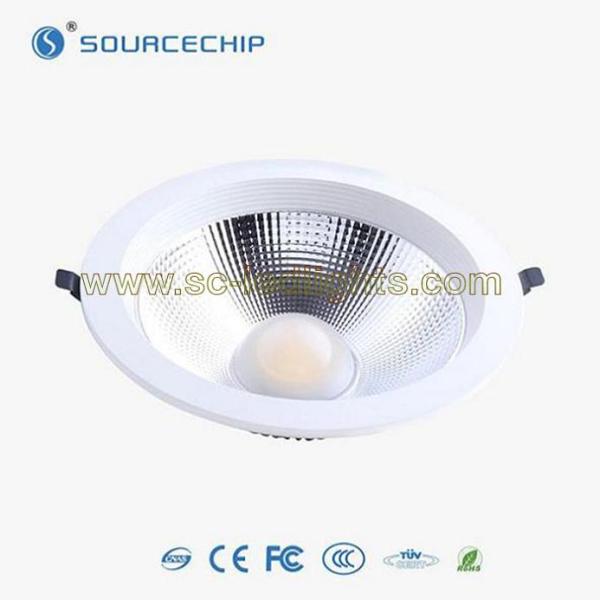

    COB Recessed LED downlight 20w

    Ask Lasest Price
    Brand Name : Sourcechip
    Model Number : SC-DLP020W01
    Certification : CE, FCC, RoHS, UL
    Price : US $ 10.13 - 11.92 / Piece
    Delivery Time : 3-7days for samples,7-15 days for batch order
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal
    Supply Ability : 50000 Piece/Pieces per Month
    • Product Details
    • Company Profile

    COB Recessed LED downlight 20w

    COB Recessed LED downlight 20w
    Sourcechip Opto-electrical Tech Co., LTD specializing in the production LED lights in china, Products include: LED panel light,LED down light,LED track light,LED ceiling light,Grille down light,LED tube,LED bulb,LED spot light,LED par light etc.. You can learn more about our products by our official website. If you are interested in our products, please contact us by email. We hope to establish long-term cooperation relationship with you.xinniuyuanjing

    Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
    Sourcechip LED downlight 20w Contact E-mail:
    Sourcechip LED downlight 20w website 1:
    Sourcechip LED downlight 20w website 2:
    Sourcechip LED downlight 20w Tel: +86-769-81608082
    Sourcechip LED downlight 20w Fax: +86-769-81608083
    Sourcechip LED downlight 20w Address: No.2 Min Yi Road, Wusha Community, Chang'an Town, Dongguan, Guangdong, China

    COB Recessed LED downlight 20w

    • This ceiling light is fitted with the latest "COB" LED technology, providing the highest level of light output and the best colour rendering index (quality of light). Mounted infront of the LED is a reflector cone, spreading the light evenly to eliminate bright or dark spots or a yellow halo which otherwise can appear with some LED bulbs.

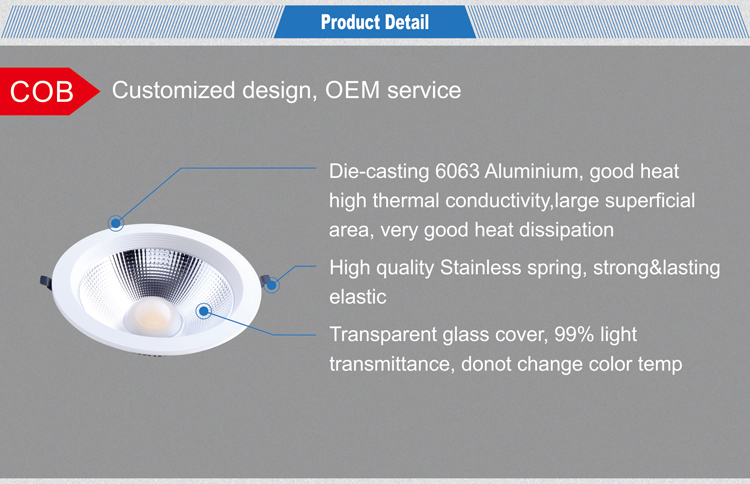

    • Unique design aluminium finned heat sink, providing superior heat dissipation by conduction and convection. This keeps the LED at the optimal operating temperature, ensuring it's life isn't cut short. Glass front cover protects the LED from the environment. Central bulb pivots in the frame to allow directional adjustment of the light.

    • Fire safety regulations always require recessed light fittings to be fire-rated whenever they’re fitted beneath occupied floors of a building. This particular model of Sourcechip LED ceiling light fulfils this requirement. The intumescent material used in its construction expands when heated to seal the ceiling and prevent the easy spread of flames. This provides crucial time for occupants of upper floors to evacuate.

    Specification of led DOWN light modern:

    LED Model No.

    SC-DLP020W01-30

    SC- DLP020W01-40

    SC- DLP020W01-60

    Power

    20±1W

    Input Voltage

    AC 100-240V

    Output Voltage

    30-33V

    Input current

    600mA±5%

    Efficiency

    ≥85%

    Cutout

    155mm

    Lighting CCT

    3000±250k

    4200±250k

    6200±250k

    Lighting LM

    1600±100LM

    1650±100LM

    1700±100LM

    Lighting View Angle

    40°

    Lighting CRI

    ≥80

    Working Temp.

    -10℃~40℃ / R.H.≤85%

    Storage Temp.

    -30~65℃

    Life span

    35,000 HR

    IP Rate

    IP20

    More picture of led downlight modern:

    COB Recessed LED downlight 20w

    Feature of downlight led :

    • Low power consumption, High power efficiency

    • No UV or IR radiation

    • Products are compact of aluminum material

    • Superior thermal performance, high applicability

    • Enviromental friendly:NO UV infrared and other radiation ,shock vibration resistant

    • Imported light source ensure high brightness

    • External constant- current driver, stable performance

    COB Recessed LED downlight 20w
    Application of LED light down:
    • Shopping malls

    • Restaurants, meeting rooms

    • Hall, home

    • Interior lighting, partial lighting and office

    • Especially suitable for public areas like lobbies, corridor and stairwells

    COB Recessed LED downlight 20w


    Test report:

    COB Recessed LED downlight 20w

    COB Recessed LED downlight 20wCOB Recessed LED downlight 20w

    Packing:

    • The stickers will be pasted onto the master carton

    • Seal packing box tight before transportation, handle gently, mark product name, quantity etc on carton box

    Company Information

    Dongguan sourcechip opto-electrical tech. co.,ltd is located in Dongguan City, Guangdong province,China.
    Sourcechip has been specializing in manufacturing and marketing LED lights for 15 years.
    It has advanced automatic amchines and professional testing lab,more than 200 experienced workers.
    Sourcechip is a BV and TUV certified factory,alibaba golden supplier. All products are CE,RoSH approved.
    With professional R&D team,sourcechip is ready for all kinds of requirements from its customers.
    Products are mainly exported to Europe,South America,Asia,North Africa.

    Sourcechip believes that customers' satisfaction is its goal.
