| Brand Name : | Sourcechip |
| Model Number : | SC-DLE015W01 |
| Certification : | CE, FCC, RoHS, UL |
| Price : | US $ 11 - 16.2 / Piece |
| Delivery Time : | 3-7days for samples,7-15 days for batch order |
| Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal |
| Supply Ability : | 50000 Piece/Pieces per Month |

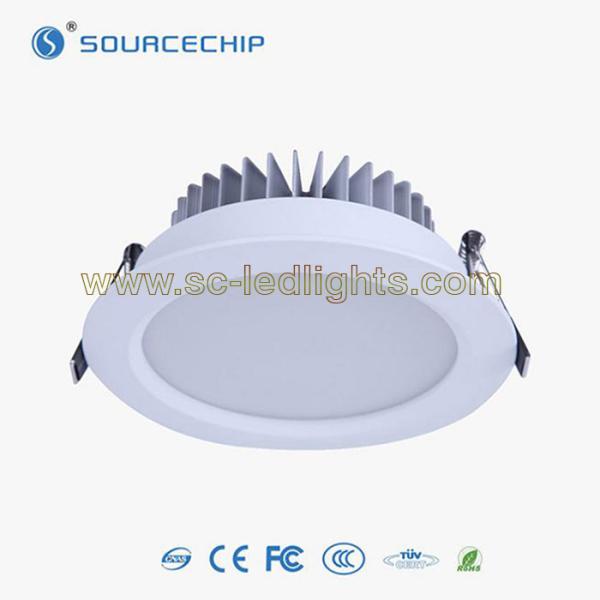

15W smd LED downlight dimmable
Sourcechip Opto-electrical Tech Co., LTD specializing in the
production LED lights in china, Products include: LED panel
light,LED down light,LED track light,LED ceiling light,Grille down
light,LED tube,LED bulb,LED spot light,LED par light etc.. You can
learn more about our products by our official website. If you are
interested in our products, please contact us by email. We hope to
establish long-term cooperation relationship with you. xinniuyjtg
Dongguan Sourcechip Opto-electrical Tech Co.,Ltd.
Sourcechip LED downlight dimmable Contact E-mail:
Sourcechip LED downlight dimmable website 1:
Sourcechip LED downlight dimmable website 2:
Sourcechip LED downlight dimmable Tel: +86-769-81608082
Sourcechip LED downlight dimmable Fax: +86-769-81608083
Sourcechip LED downlight dimmable Address: No.2 Min Yi Road, Wusha
Community, Chang'an Town, Dongguan, Guangdong, China

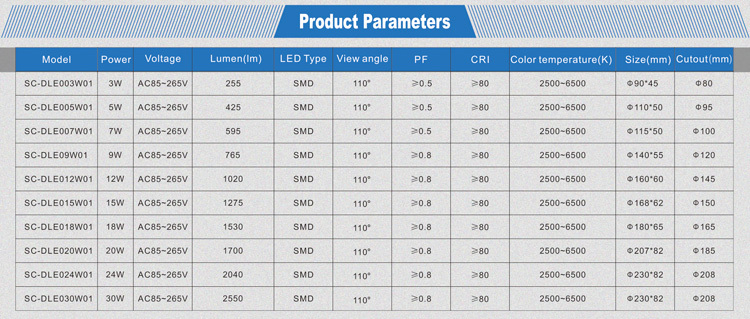

LED Model No. | SC-DLE015W01-30 | SC-DLE015W01-40 | SC-DLE015W01-60 |
Power | 15±1.5W | ||
Input Voltage | AC 100-240V | ||
Output Voltage | 13-18V | ||
Input current | 250mA±5% | ||
Efficiency | ≥85% | ||
Cutout | 150mm | ||
P.F | ≥0.80 | ||
Lighting CCT | 3000±250k | 4200±250k | 6200±250k |
Lighting LM | 1020±100LM | 1275±100LM | 1275±100LM |
Lighting View Angle | 110° | ||
Lighting CRI | ≥70/≥80 | ||
Working Temp. | -10℃~40℃ / R.H.≤85% | ||
Storage Temp. | -30~65℃ | ||
Life span | 35,000 HR | ||
IP Rate | IP20 | ||

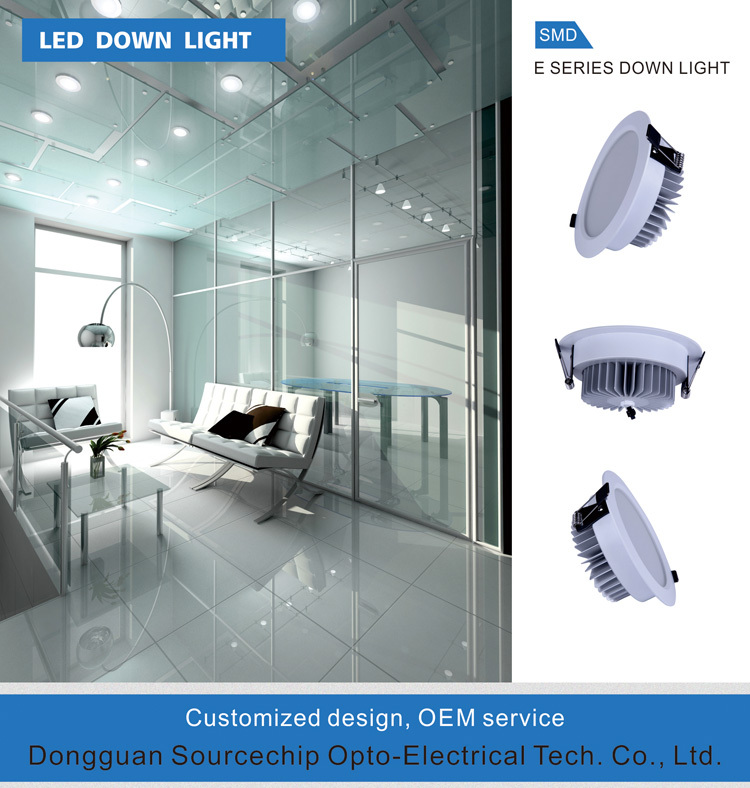

Product show
downlight led material
Lamp body | Diffusive lampshade | light source | Driver | Finish |
aluminiumalloy | lighttransmittance≥85% | smd | wide Input driver, | white |
Product features
1.Can be frequent starting, no flickeringand glaring;highCRI;shock-resistant;
2.Simple&elegant appearance,newly &attractive design,suit for manyilluminationplaces.
3.energy-saving and environmental, no ultra-violet,mercury and infrared,conform to ROHS requires.
4.Adopt importlightsource and advanced heat dissipationtechnology,product malfunction life span achieve to 25000 hrs.
5.Isolated low voltage constant current driver, over current protection, over voltage protection and output short circuit protection; High safety, stability and reliability.
Color temperature
Offices, shopping mall, supermarket, schools, hospitals, hotels,
parking lot, factories, municipal engineering, houses etc.
1. Packaging
Name | Description | QTY | Weight |
PE bag | L180*W150mm | 1pcs | 10±3g |
White box | W95*L95*H65mm | 1pcs | 300±30g/1PCS |
Outer Carton | W395*L340*H210mm | 40pcs | 13±0.5kg/carton |
2.Shipping
1. By Air: In some area, the shipping cost by air is more favorable than by Express; 7-10days for delivery.
2. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 7-15 days for delivery of led track light.
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
Trade Terms
1. Payment term: T/T 30% deposit after order confirmed, the balance after goods ready before shipping . or L/C , or Western Union for small amount .
2. Lead time : normally in 7~15 days after deposit received
3. Sample policy : Samples are always availble for each model . Samples can be ready in 3~7 days once payment received .
4. Shipping port: shenzhen , China
5. Discounts : We offer discount for big quantity.
Quality control
Sourcechipalready built up distribution network in German, U.K, U.S.A., Canada, Spain, Italy, we supply technical support and training to existing distributors, any quality issue in above area, customers are welcome contact Sourcechip local business partner for products exchange or maintenance.
You inquiry will be replied in 24 hours about led light.
All your inquiries will be answered in fluent English by well-trained & professional staffs.
We supply OEM & ODM service for our client, natural packing and customer's packing style available without extra cost.
Many optional payment terms: L/C, T/T, Western Union, Paypal, Escrow etc, guaranty customer receive high quality products.
Dongguan SOURCECHIP OPTO-ELECTRICAL Co, Ltd. is a High-tech enterprise with 15 years history, BV,TUV approval factory as well . we focus on developing, manufacturing and marketing indoor LED lights.Our main lines are led bulb/spotlight, led downlight, led track light, and there are more than 400 models products for option , these products are CE,RoHS certified and 3 - 5 years warranty.
1 | We are consistent with the innovative design by ourprofessional designers. |
Every product manufactured went throughdozens of proceduresand presented by hundred hours of brilliant craftsmanship. | |
2 | We maintained strict quality controls to ensure ourproducts produced meetsinternational safety standards |
Sourcechip OptoElectrical has a research and developmentteam consisting of more than 100 membersfrom Taiwan andown workshops covering 7000 square meters. | |
All products are researched, developed and selfproducedinhouse to maintain cost effectiveness which is the primechoice for business partners. | |
3 | Pursuing environmental friendly, fashionable, highlyefficient and cost savings |
Our packaging is tested to withstand high pressure forceof more than 50kg, offering complete protection to guaranteeyour items arrived in perfect condition. | |
4 | Easy to install |
Every package comes with detailed instructions for installation. | |
5 | Perfect service system |
Sourcechip OptoElectrical Tech Co. Ltd. is a worldrenownedlighting manufacturer and supplier. We set thestandards for providing the perfect lightings for any location. | |
With shipping facility to more than 200 countries, our productsare the preferred choice around the world. |
1.Monthly output over200,000pcs.
2.Single package in blister or color-box.
3.Sample order in small quantity is acceptable.
4.Protection of your sales area,ideas of design.
5.Well-trained and experienced staffs to answer all your inquiries in fluent English.
|
|
